Amott Road 44

Peckham, SE15  ·  Rear Extension

Type
Rear Extension
Location
Peckham, SE15
Status
Completed 2023
Cost range
£95k – £125k
About this project

The owners wanted more kitchen and dining space without altering the character of the house. The extension is deliberately restrained: dark-painted facing brick matching the existing party wall, a single roof light over the dining table, and full-width timber-framed sliding doors to the garden.

The floor level is maintained across the threshold — the kitchen floor tile continues as decking under the fully open door, so inside and outside read as one room in summer. The structural beam is concealed in the ceiling line. There is no junction detail that announces the extension.

Ten weeks on site, occupied throughout. The family lived in the front rooms while we worked from the rear. The programme was built around the school run.

Project details
TypeRear Extension
LocationPeckham, SE15
StatusCompleted 2023
Duration10 weeks on site
Cost range£95k – £125k
ArchitectNick Elias Architects
Start a similar project →Talk to us first

Gallery · 1 photo and 7 drawings

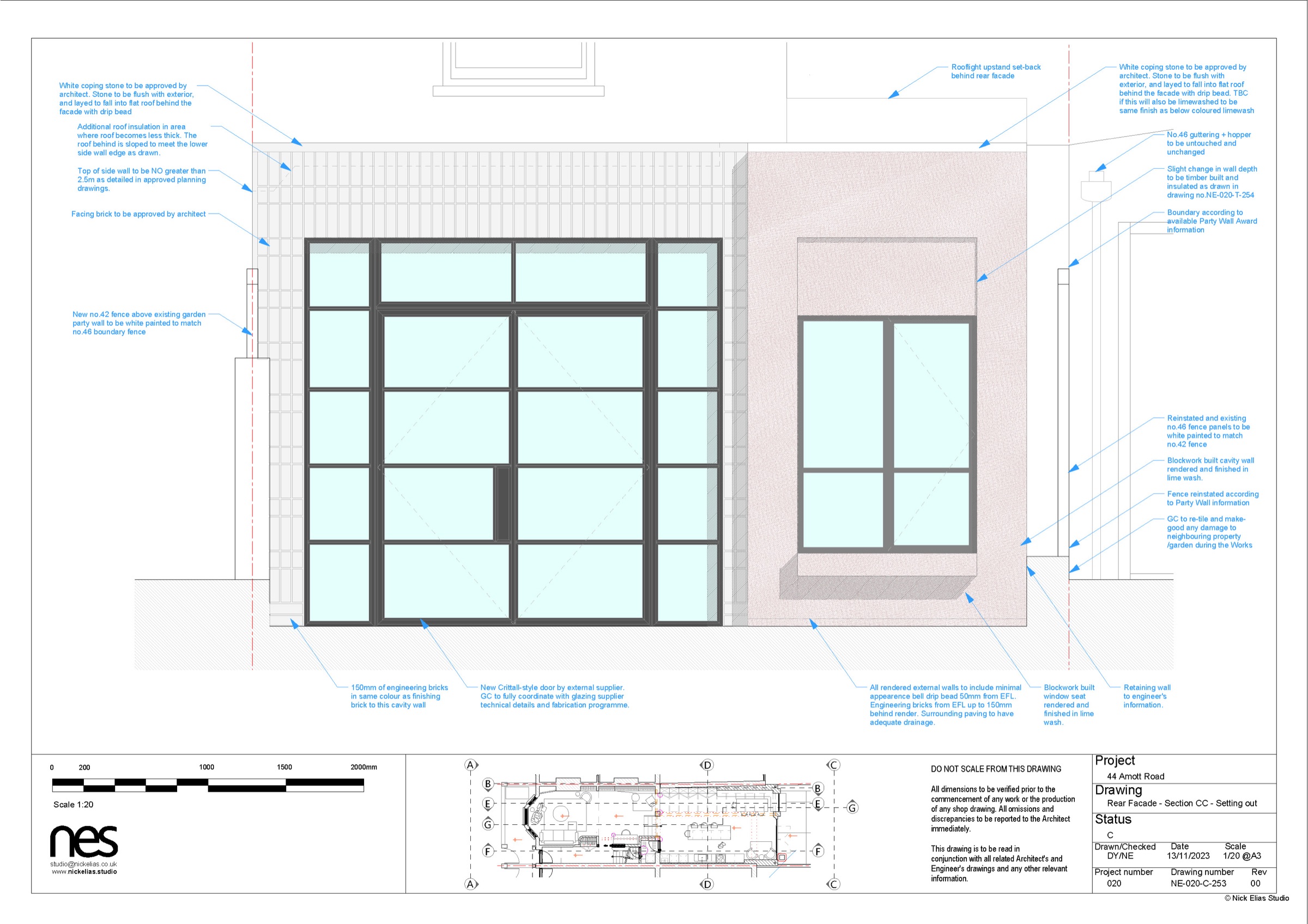

Architect's drawing — rear facade section and setting-out for the glazed opening, Amott Road 44, Peckham SE15

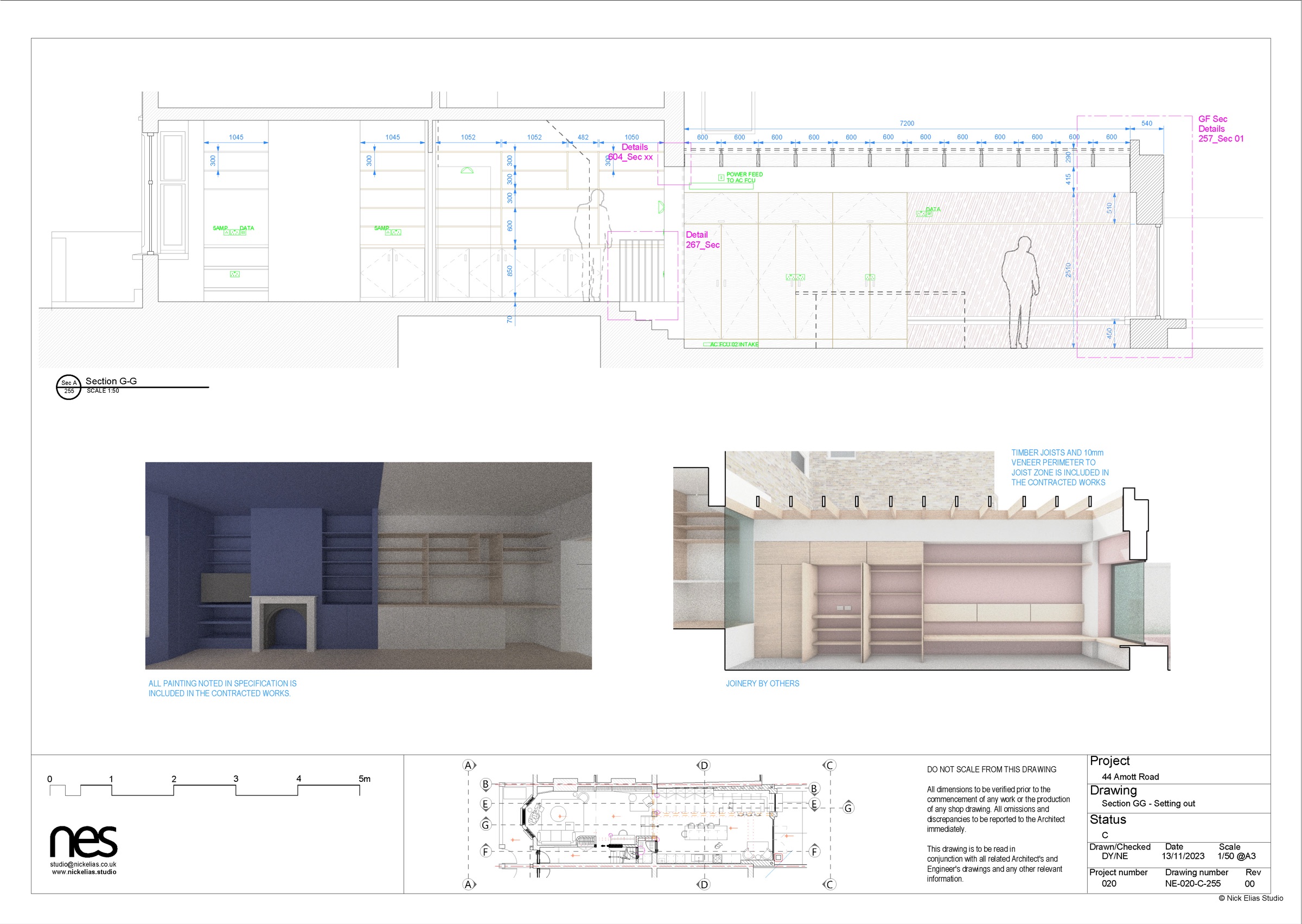

Architect's drawing — long section through the ground floor with joinery elevations, Amott Road 44, Peckham SE15

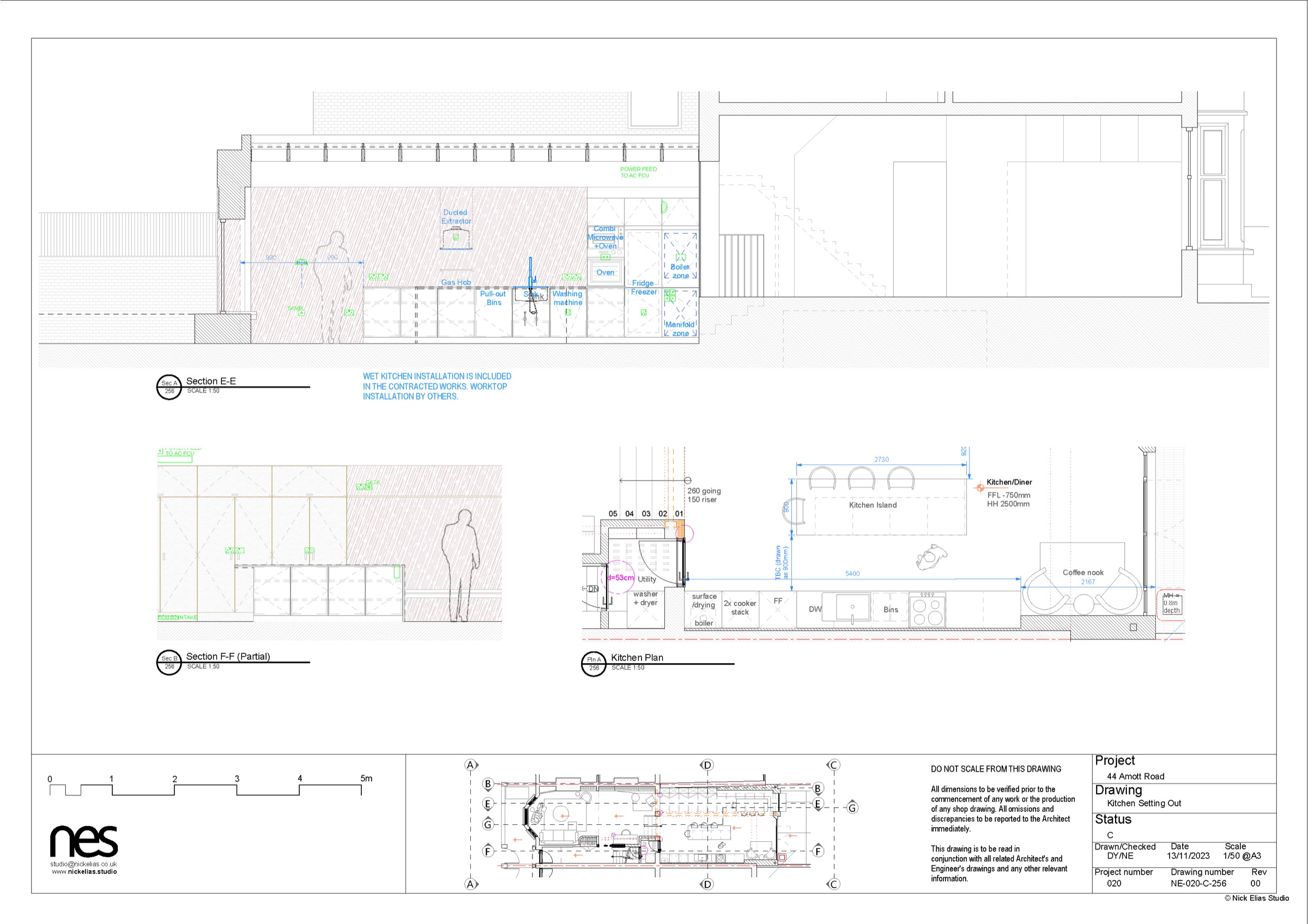

Architect's drawing — kitchen setting-out plan and elevations, Amott Road 44, Peckham SE15

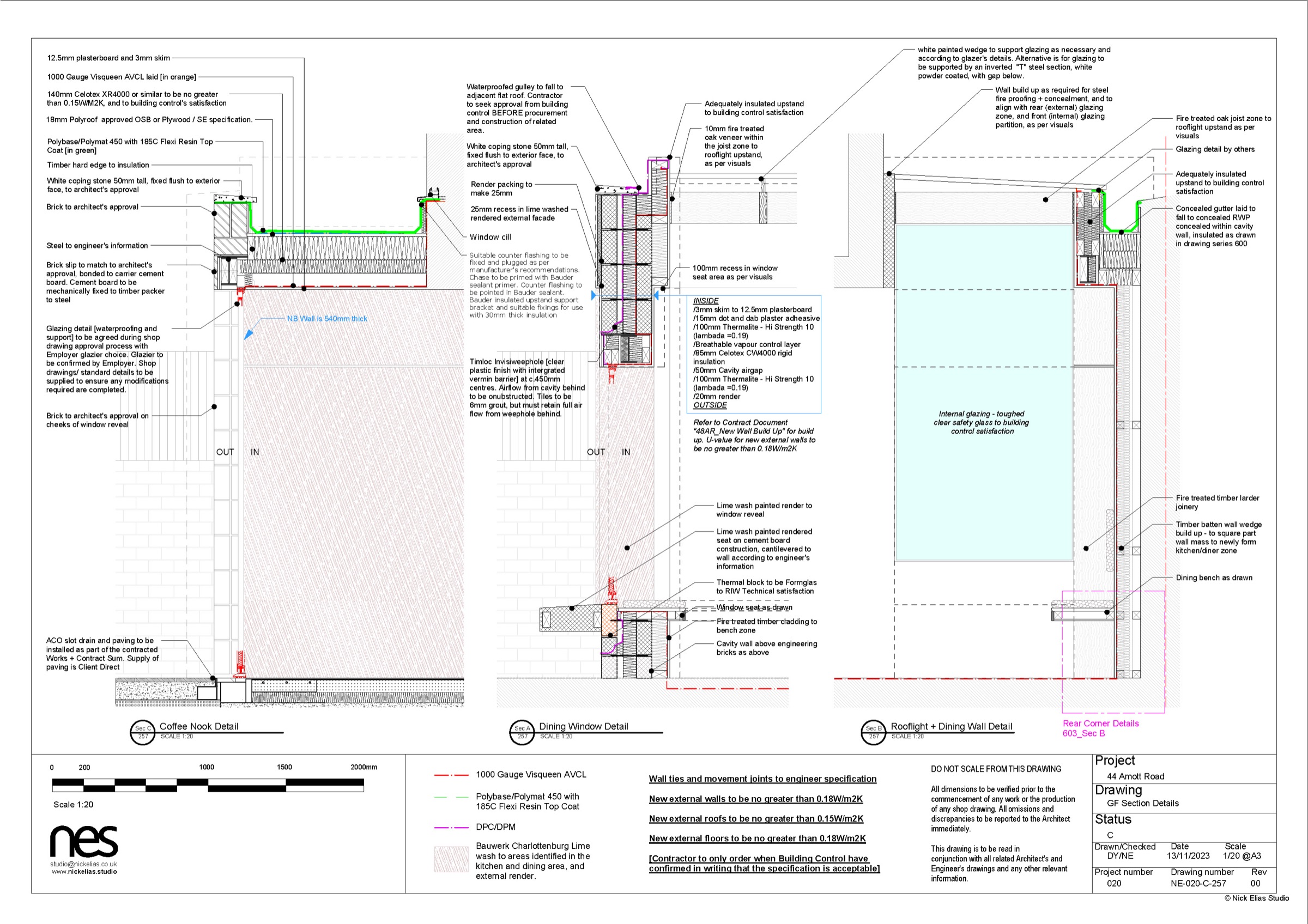

Architect's drawing — coping, rooflight and window head construction details, Amott Road 44, Peckham SE15

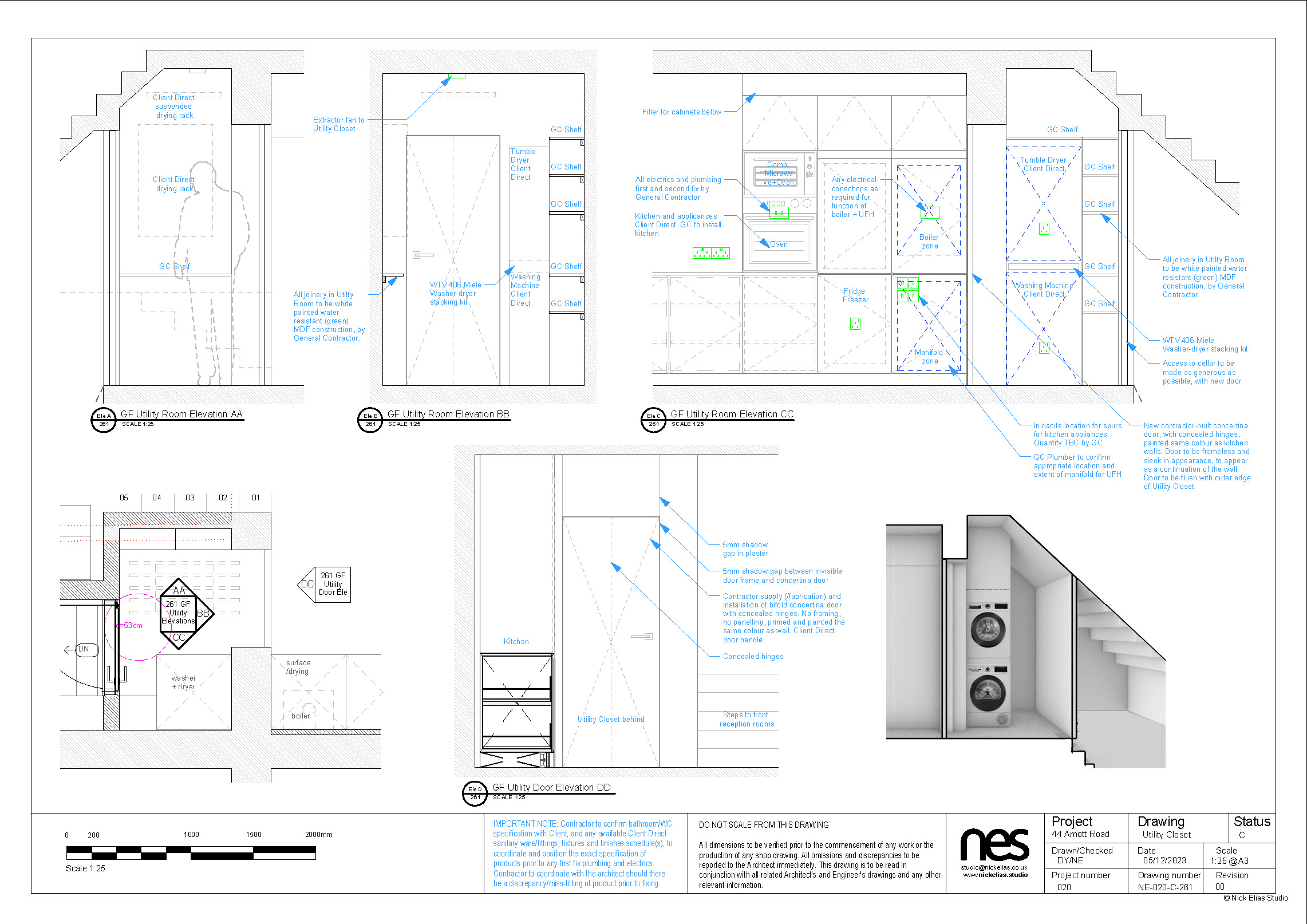

Architect's drawing — utility room elevations and under-stair joinery, Amott Road 44, Peckham SE15

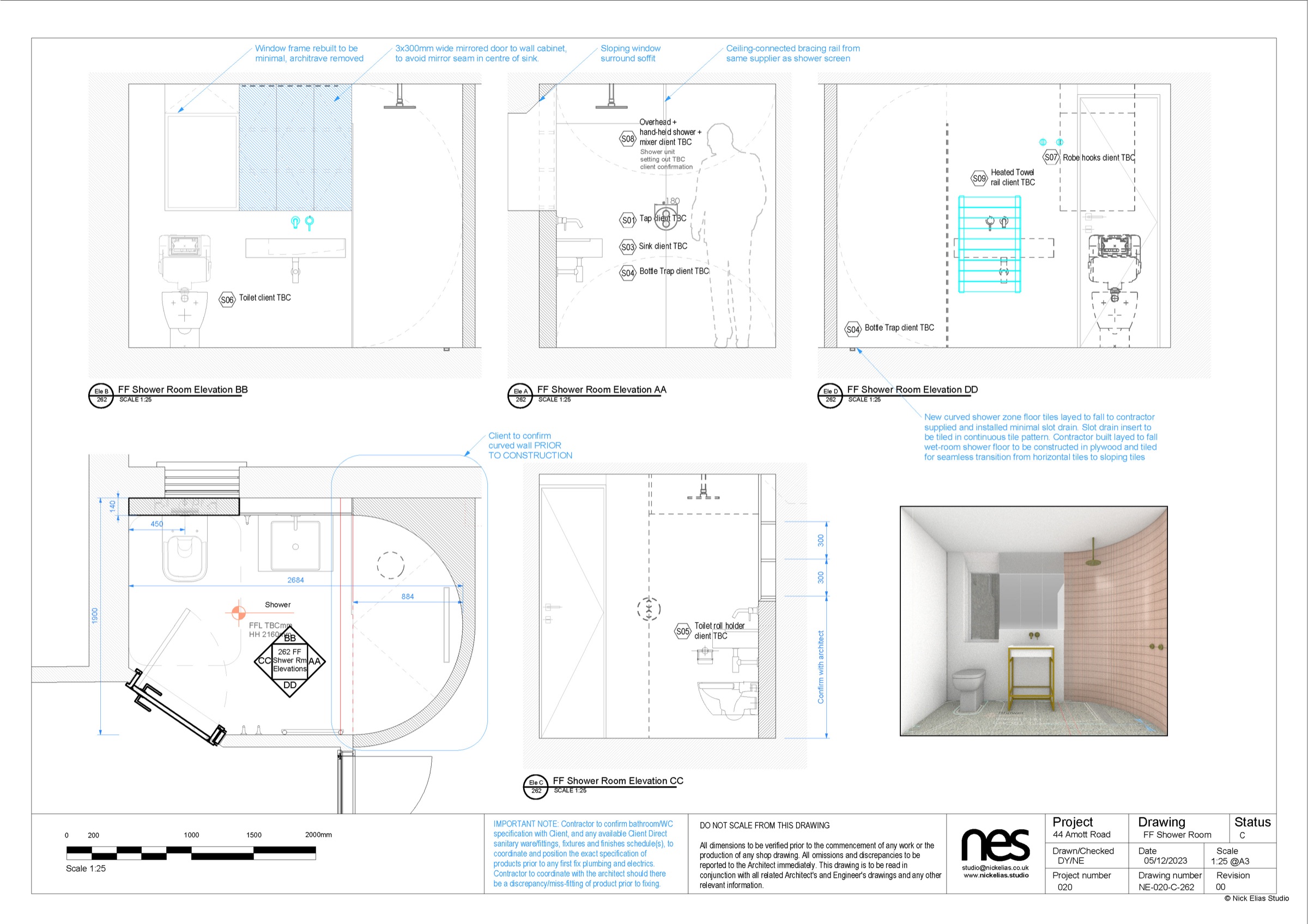

Architect's drawing — shower room elevations and setting-out, Amott Road 44, Peckham SE15

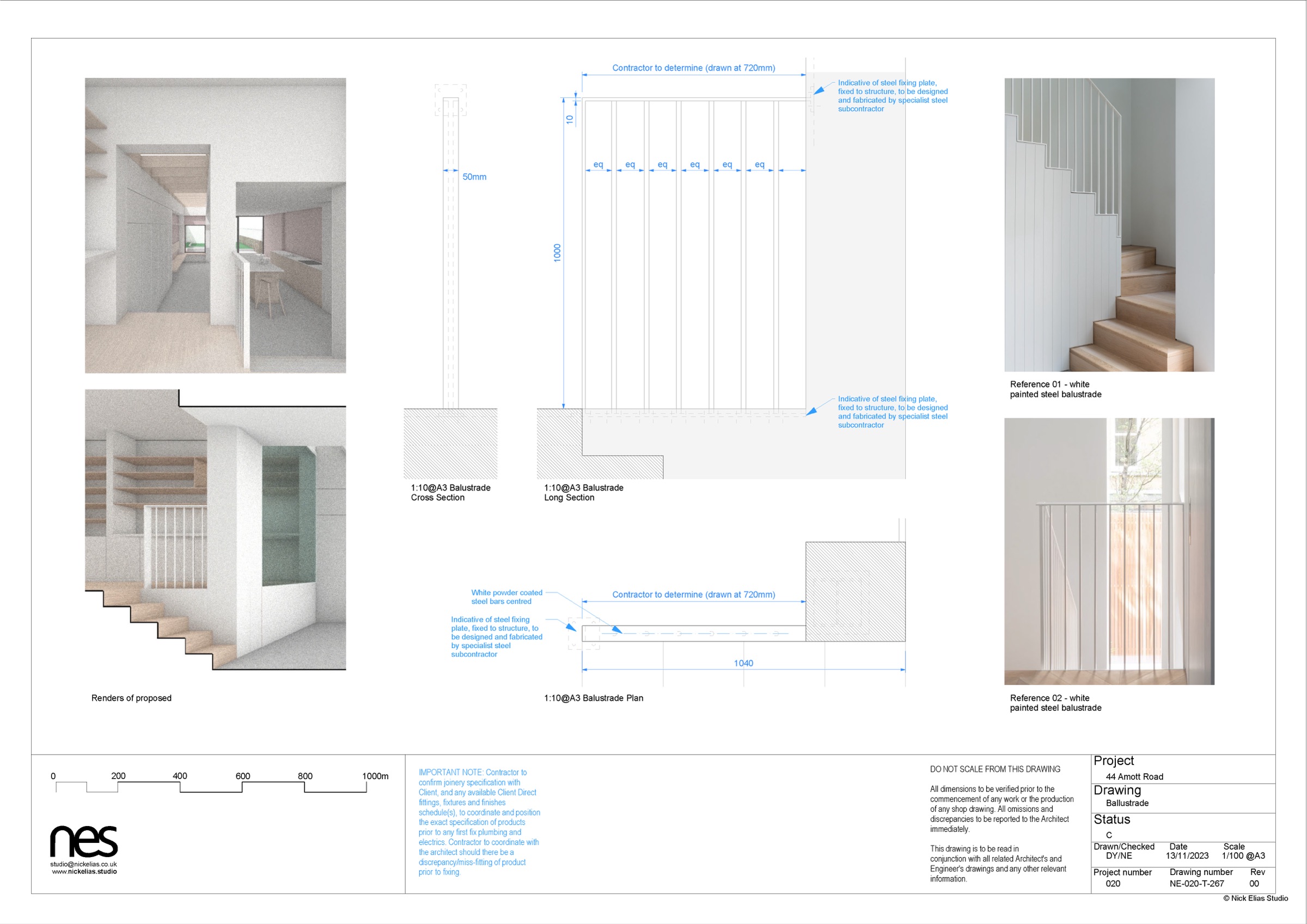

Architect's drawing — balustrade sections with reference images, Amott Road 44, Peckham SE15

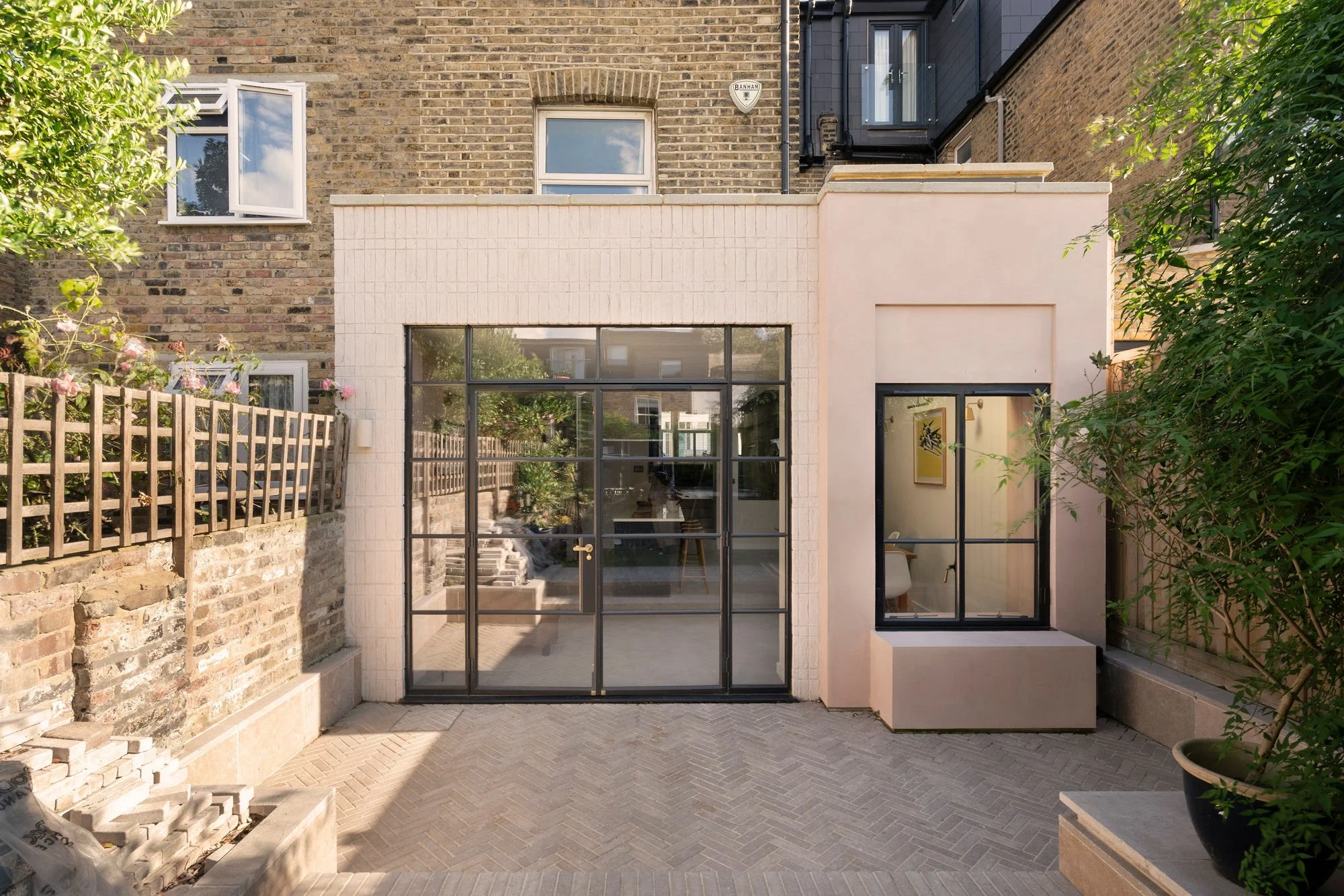

Rear elevation in pink render with steel-framed glazing onto the courtyard — Amott Road, Peckham SE15
